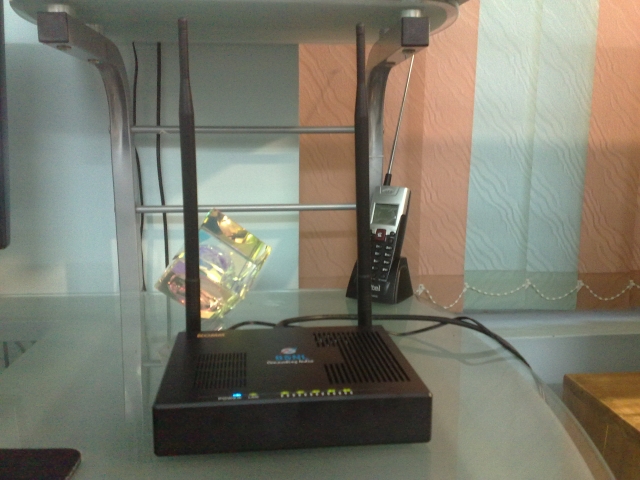

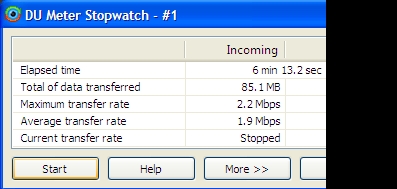

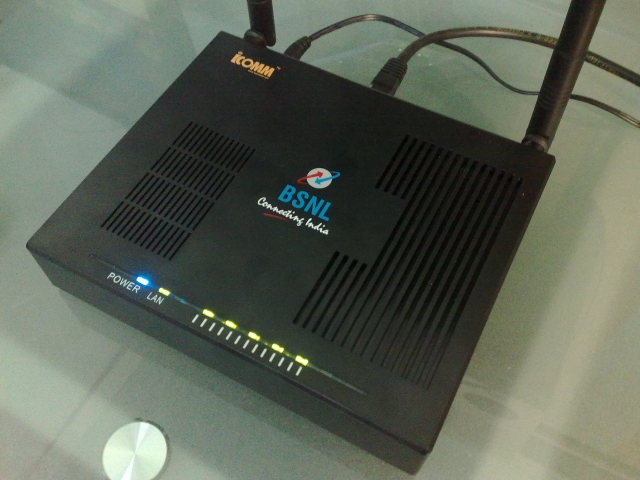

Arun 795 Report post Posted June 1, 2010 So I finally decided to try out BSNL WiMAX (Mobile WiMAX 802.16e) as it launched recently in Trivandrum. I couldn't find anyone who used it for their experience or reviews, so I decided to try it out myself. Being a new technology that meets the requirements of 4G, its surprising that we are able to use Mobile WiMAX here when even 3G is expected to start after several months only. The EVDO service from BSNL hasn't lived up to the expectations as there were too many network issues and even BSNL officials won't recommend EVDO now and would suggest opting for 3G or WiMAX instead. So they are fully focused on building a good WiMAX network nationwide while the other operators are still bidding for a BWA license. BSNL offers Mobile WiMAX through 3 types of equipments... an outdoor CPE (Customer Premises Equipment), an indoor CPE and a USB dongle. They will give you the connection after checking the feasibility in your area only. So if the signal is very weak in your place then you will have to opt for the outdoor CPE which consists of an antenna to be fixed on top of your building and connected to a receiver near your PC using cable. However there is no portability with an outdoor CPE setup and makes it similar to Fixed WiMAX setup. The more portable option is the indoor CPE which looks like a normal DSL router with 2 large antennas. This equipment is recommended if you have average signal in your area. Even though the device needs to be connected to your PC via LAN, you can place the device anywhere (with a power plug nearby) and you can even use it in other places (under different towers) where there is BSNL WiMAX coverage. The most convenient device is the USB dongle as it doesn't need power and easy to carry around with a laptop. However there are reported technical issues with the USB dongle device at the moment and hence BSNL is not recommending it for now. Once the issue is sorted out you can swap your indoor/outdoor CPE with a USB dongle if you opt for FMC (see below). The device cost is as follows: Outdoor CPE: Rs.5000 Indoor CPE: Rs.4200 USB Dongle: Rs.2800 I would not recommend purchasing the device outright as you have an option to pay monthly (FMC - Fixed Monthly Charge) instead, which needs a refundable deposit of Rs.2000. You can pay Rs.50 (Indoor/Outdoor CPE) or Rs.40 (USB Dongle) per month instead which allows you the freedom to swap the device later if needed. It also gives you warranty for the device as long as you have the service active. BSNL WiMAX has different plans for different states and in Kerala the only plan available for home users is "512 to 2 mbps download speed with unlimited data usage for Rs.999 + tax" So I heard about the newly launched service and I got the contact number of an official who handles BSNL WiMAX in Trivandrum and he told me that I can just send an SMS to book the connection. He also gave me the contact number of a marketing executive and so I called him to book the connection. He told me about the issue with USB dongle at that time and promised someone would come the same day to check feasibility in my area. However they couldn't make it that day and came the next day with the indoor CPE equipment. The device is an "ICOMM 610 Indoor CPE" They switched on the device and got connected immediately as the device was pre-configured with BSNL test service login. Fortunately for me the signal in my area was extremely good as the Base Station tower was just under half a kilometer away. They say that a base station tower can handle around 5 kilometer radius with an indoor CPE. The minimum CINR value required is 10 dB and I was getting above 20 dB with full range shown in the device indicator lights. They asked me to browse and check myself, I tried some downloads and noticed an average speed of 2 mbps. As the download speed was good I decided to go ahead and filled up the application form. Since the test equipment that they brought along was a new one, they gave me the same device after removing the BSNL test login from the configuration page. I was told that they would create a new login (needs to be done in their office in Bangalore) for me which I have to configure in the device settings page. Since it was the weekend they couldn't get me the login the same day and I had to wait until Monday to get the login details, and I finally got connected to BSNL WiMAX on Monday. It seems they are leasing a common IP adddress for WiMAX users since I notice the same IP address whenever I connect. Static IP address option is available at an extra cost (for Business plans). I notice that the "common IP address" that they provice is listed on an RBL which is a concern, though I think its the BSNL IP range that is blocked. I did some downloads and noticed that the download speed is always stable and I do get up to 2 mbps download speed as promised: I noticed an issue with the default DNS servers as resolution of domain names either takes long time or doesn't resolve at all. So I changed to external DNS addresses in the LAN configuration and it has been fine after that. Even though the download speed was very good, the upload speed was very bad at I was getting an average upload speed of around 65 - 75 kbps only. So it will be a problem if you have file uploads to do and will decrease your torrent ratio if you have torrent usage. I also noticed that the download speed gets affected when there is an upload in progress. I have checked VPN connectivity and it is working fine. Applications like Remote Desktop are also working fine. My verdict: After using the service for a couple of days it does look very stable and the download speed hasn't dropped as I get 2 mpbs constantly. A 2 mbps download speed plan with unlimited data usage for Rs.999 per month and mobility too is definitely a very good plan and I don't think any other broadband plan in India can beat that for now. Being a new service it is good to see BSNL doing well in the initial stages itself and I hope the service will get even better. 4 Share this post Link to post Share on other sites
srk006 21 Report post Posted June 1, 2010 Nice review. How is the latency to Us/Europe? Share this post Link to post Share on other sites
Arun 795 Report post Posted June 1, 2010 Here you go... US (Level 3): Ping statistics for 4.2.2.2: Packets: Sent = 37, Received = 37, Lost = 0 (0% los Approximate round trip times in milli-seconds: Minimum = 254ms, Maximum = 399ms, Average = 336ms UK (Rapidswitch): Ping statistics for 87.117.237.205: Packets: Sent = 40, Received = 40, Lost = 0 (0% los Approximate round trip times in milli-seconds: Minimum = 236ms, Maximum = 359ms, Average = 312ms India (Reliance IDC): Ping statistics for 220.226.182.128: Packets: Sent = 60, Received = 60, Lost = 0 (0% l Approximate round trip times in milli-seconds: Minimum = 68ms, Maximum = 226ms, Average = 165ms 1 Share this post Link to post Share on other sites
rbdhoot 11 Report post Posted June 1, 2010 Are you able to use sites like Rapidshare / Megaupload etc. ???? Share this post Link to post Share on other sites
Arun 795 Report post Posted June 1, 2010 Yup, both download and upload Share this post Link to post Share on other sites
raccoon 53 Report post Posted June 1, 2010 +1. Nice review. The initial cost and pathetic upload speed is a deal breaker. Despite good downstream bandwidth, the pathetic upstream will severely limit the utility of the connection. Share this post Link to post Share on other sites
Arun 795 Report post Posted June 1, 2010 Don't go for outright purchase, get the FMC option... after all the FMC option gives you warranty throughout and you can swap device as well if needed. Share this post Link to post Share on other sites
srk006 21 Report post Posted June 1, 2010 latency seems to vary a lot. well as expected from wireless connection of course. I just checked BSNL's wimax page. 999UL plan is shown to have fixed speed of 512kbps and 'upto 2mbps' plans have data limit. Arun, are you sure you are on True Unlimited plan? This is the page : http://www.bsnl.co.in/service/wimax/wimax_homepage.htm Share this post Link to post Share on other sites
Arun 795 Report post Posted June 1, 2010 Right, the plans vary for different states. In Kerala the only plan available is: "512 kbps to 2 mbps with unlimited data usage for Rs.999 per month" Share this post Link to post Share on other sites
SumitVerma 187 Report post Posted June 1, 2010 Sorry to be blonde, but is this working on CDMA or GSM network. Though I feel its on CDMA, Will it be anyways possible to hook 4G with the EVO? Share this post Link to post Share on other sites
srk006 21 Report post Posted June 1, 2010 (edited) ^^^ AFAIK, Its neither CDMA nor GSM! its Worldwide Interoperability for Microwave Access Edited June 1, 2010 by srk006 Share this post Link to post Share on other sites
::Hitesh:: 1,763 Report post Posted June 1, 2010 +1 for Good review, speed is good , devices provided are of average quality. 999 UL, that is + point here. Share this post Link to post Share on other sites
@mitJ@in 256 Report post Posted June 1, 2010 Speeds will get lower with passage of time like EVDO. Lesser the number of user on a BTS higher the bandwidth. Share this post Link to post Share on other sites
Arun 795 Report post Posted June 1, 2010 WiMAX has better spectral efficiency than EVDO/HSPA so that it supports higher number of users per base station. Read Intel's analysis white paper here. Share this post Link to post Share on other sites
Dj 25 Report post Posted June 1, 2010 @Arun, i see an ethernet cable running out of the CPE. is there wifi built in? i doubt it though.... assuming we add a wifi router to the setup, will there be interference with the WIMAX signals? have you tried it? Share this post Link to post Share on other sites
Arun 795 Report post Posted June 1, 2010 It does not have WiFi. I did want to try connecting with a wireless router to see if it will work or not, maybe I will try tomorrow Share this post Link to post Share on other sites
vinodchacko 2 Report post Posted June 1, 2010 nice review, Arun.. I am also going to apply for one tomorrow.. And as ur, I am also staying some where near to a BSNL office ( tover ) and I hoope the initial tests will be fine.. I am a bit confused on which plan to apply for, the 1K plan comes without a static IP and the 2K one, the static IP is included.. So my question is you you have frequent disconnections or DHCP reset issue? Of course, it varies from town to town, but still... Is that a built in Wi-Fi router ? Vinod 1 Share this post Link to post Share on other sites
Arun 795 Report post Posted June 1, 2010 Do you need the static IP address for any specific purpose? I did not see any disconnection/reset issue till now. The indoor CPE does not have WiFi (see reply above). 1 Share this post Link to post Share on other sites
Arun 795 Report post Posted June 2, 2010 I have now connected the indoor CPE device to wireless router and I am now connected to WiMAX through WiFi now So one advantage with the Indoor CPE against the USB dongle is that you can have it shared with multiple devices! Share this post Link to post Share on other sites
vinodchacko 2 Report post Posted June 2, 2010 nice to hear that the frequent disconnection that the bsnl broadband have is not in wimax ... and its even nicer to hear that you have configured the wifi router too I need the session to be maintained atleast for the time I am working and having a static IP will save the session in case any disconnection happens. At present I am using asianet and their internet, as well as support really s**ks in my area... Vinod Share this post Link to post Share on other sites
Arun 795 Report post Posted June 2, 2010 In that case the "common IP" will work out for you as I have been seeing the same IP address for the past 3 days. Share this post Link to post Share on other sites
vinodchacko 2 Report post Posted June 2, 2010 great! looking forward for the wimax! Share this post Link to post Share on other sites
kesav 127 Report post Posted June 3, 2010 Great review my dear friend. :clap: This review may put first few nails on the coffin of 3G in India. If someone can test and report HTC EVO 4G on BSNL's WiMAX n/w, it'll be of great help. Instead of buying CPE and Dongle, I can go for mobile straightaway. Share this post Link to post Share on other sites
