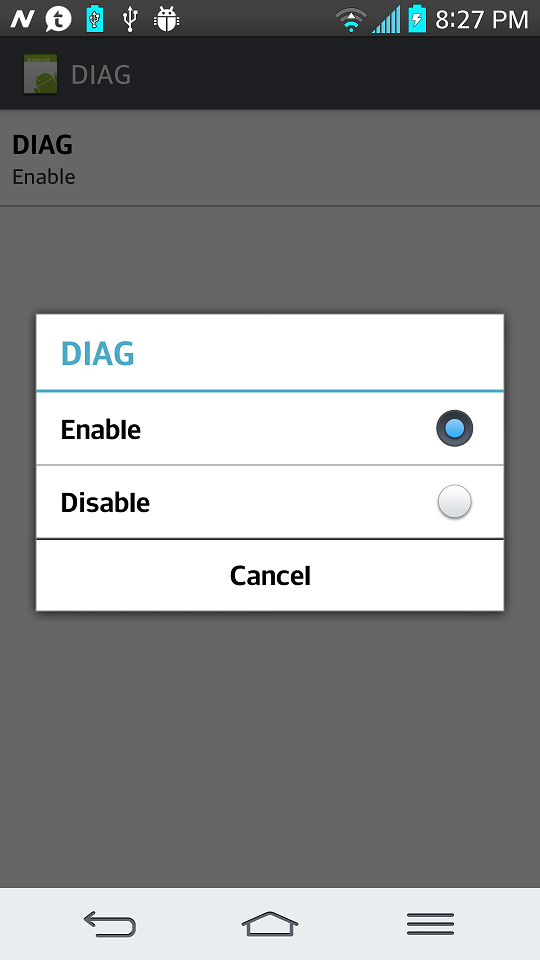

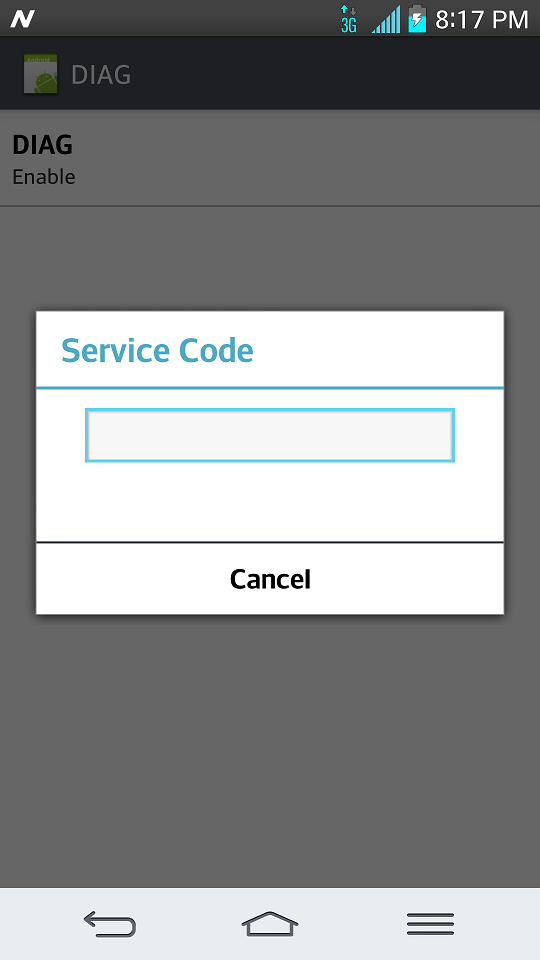

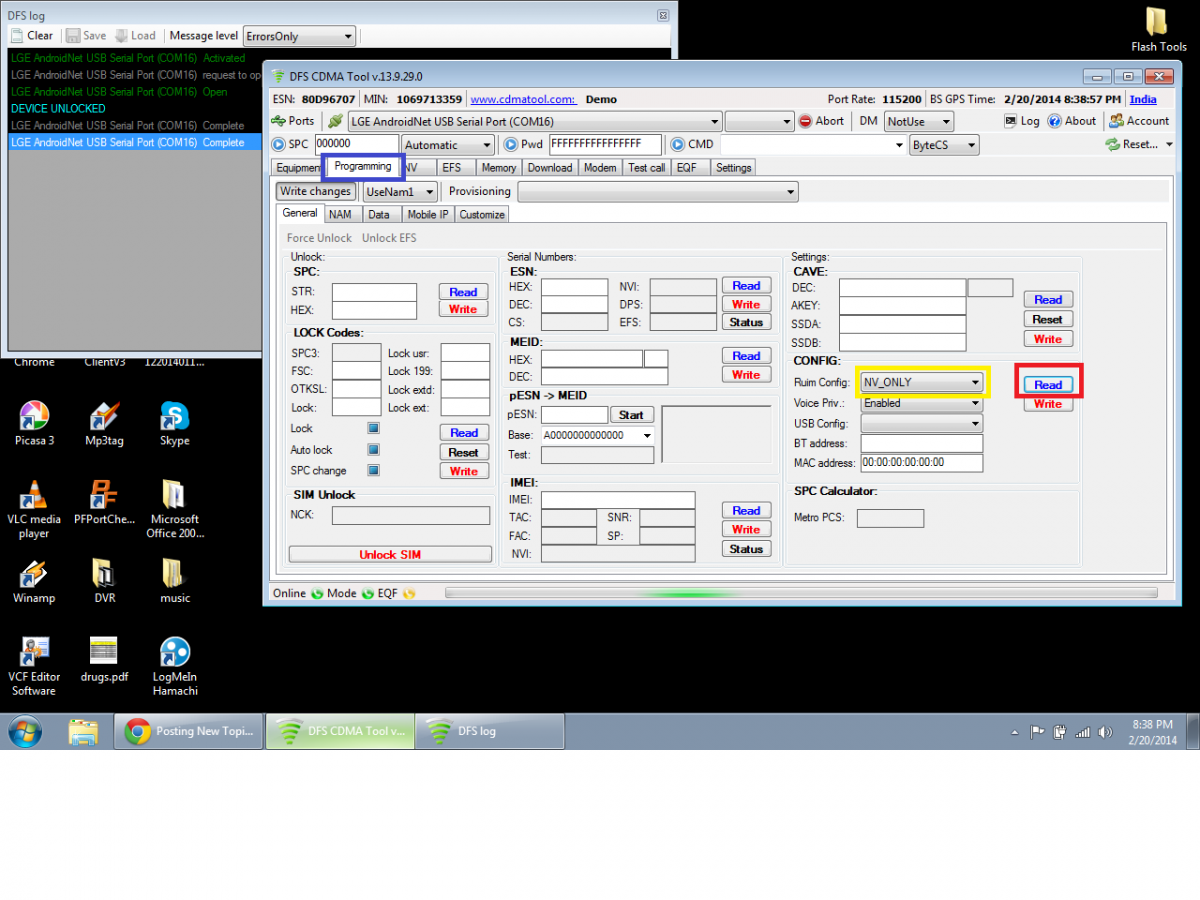

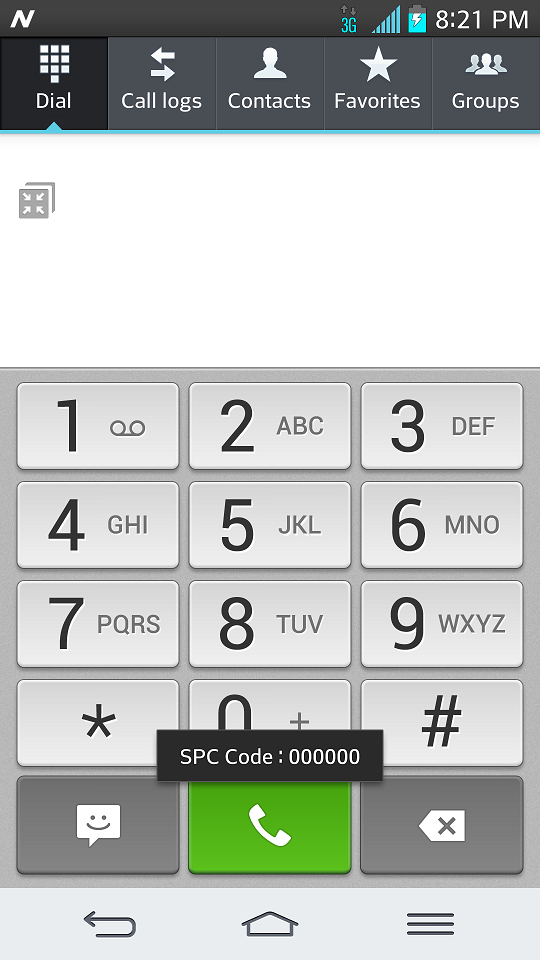

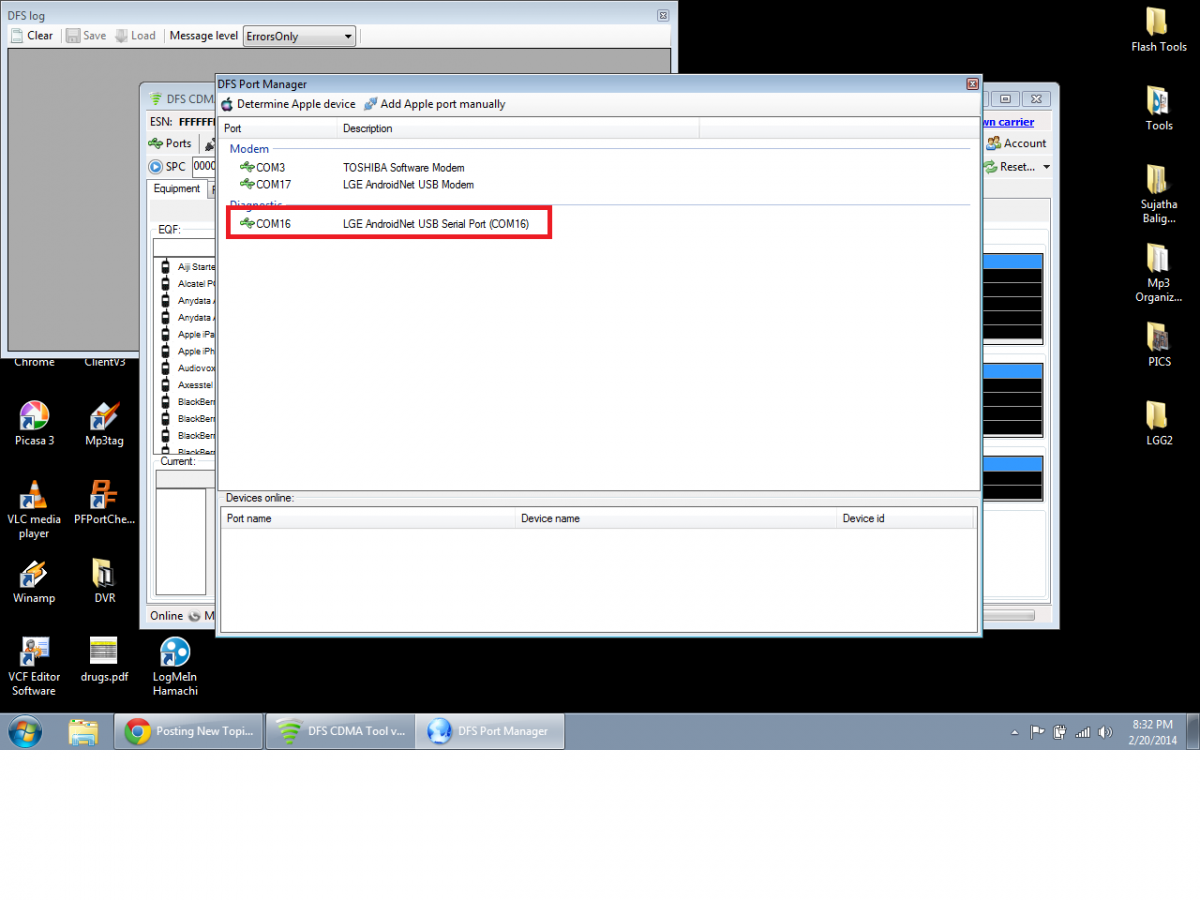

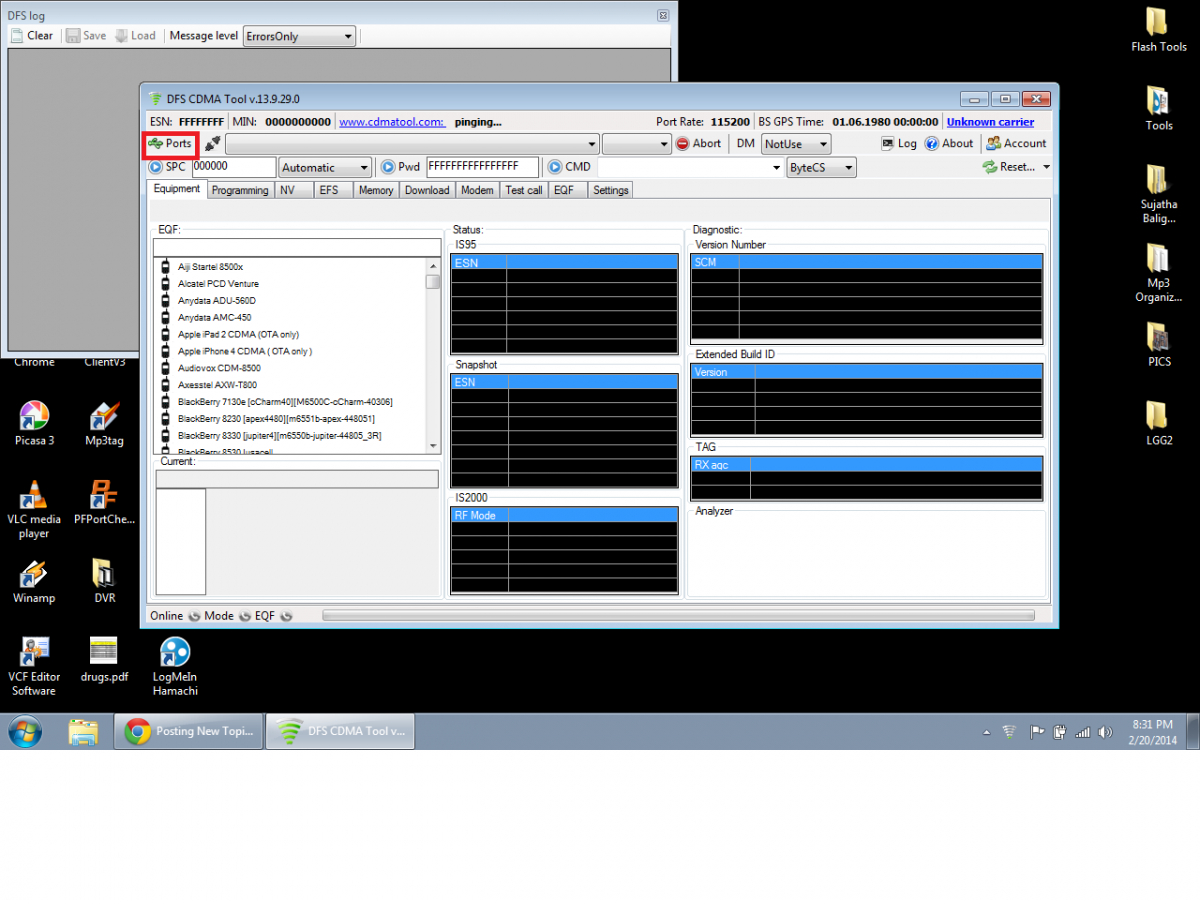

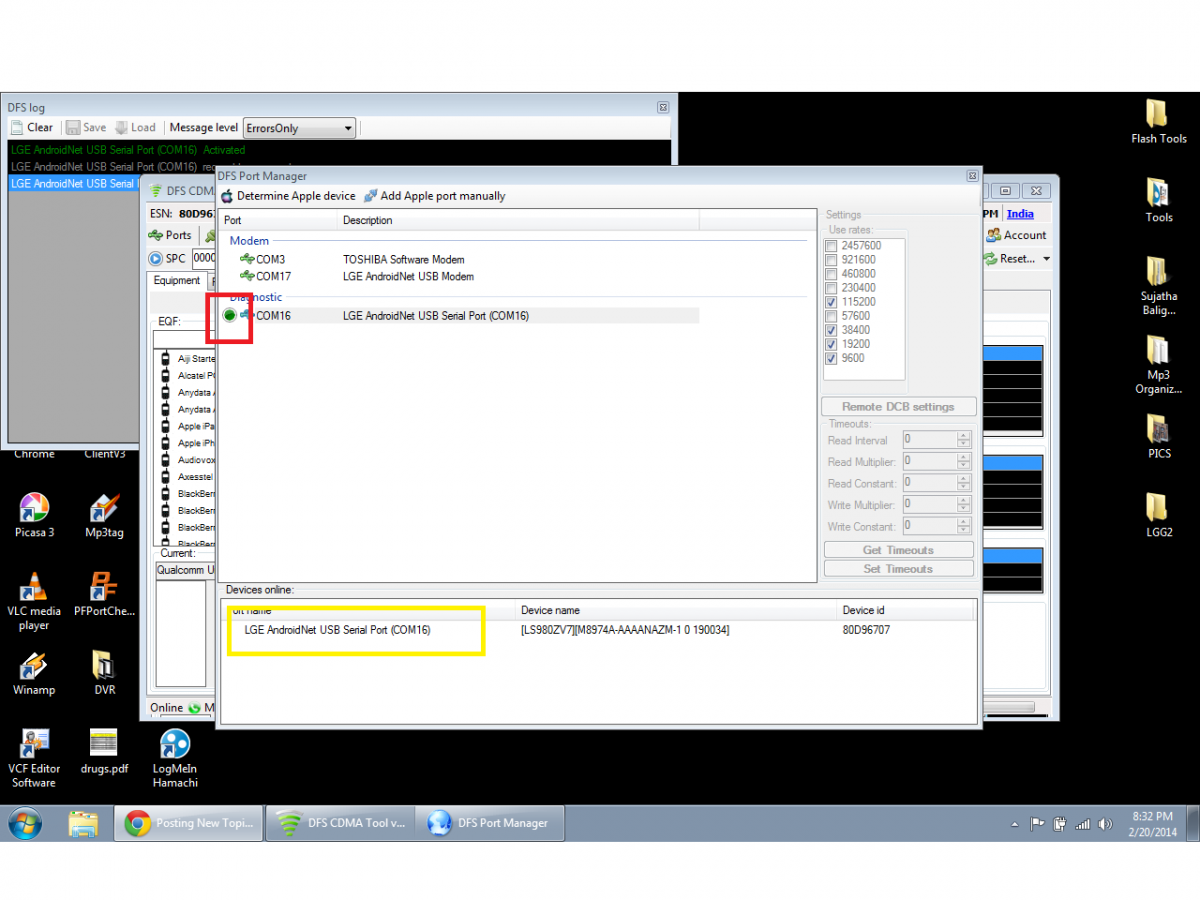

Vinod Nayak 443 Report post Posted February 20, 2014 (edited) 99% of people know how to change mode from NV to RUIM using DFS, This is for the rest 1% who don't know. Download DFS and install on PC. Phone Drivers I'm using a LG G2 LS980 Sprint CDMA model, so illustrating for the said model Know your SPL/MSL code: Dial ##443336772# Shows MSL code near the bottom of the screen, write it or memorize it. Put the phone into DIAG mode: Dial ##3424#, Enter SPC/MSL code and press ok. Select enable and press ok. Your phone is in DIAG mode. Enable Debug in Developer Options of the phone. If you do not have Developer Options under settings simple go to Settings/About Phone/Software Information under this tap on Build Number 10 times continuously and it will enable the Developer Options in your phone. Put the phone in Charge only Now that your phone is connected, Run DFS on PC & Select Ports marked in red. Select LGE AndroidNet USB Serial Port (COM16) -> this can be any number, its 16 in my case. Once the above port is selected it should it indicate like shown in pic below marked in red. Double click on LGE AndroidNet USB Serial Port (COM16) marked in yellow. If properly connected, it should look like its shown in red in the pic below. Enter your SPC/MSL in the SPC field marked in yellow and then press the SPC button. It should say Device Unlocked in the log window of DFS shown below marked in orange. Now select programming marked in blue and then select read in config marked in red. Select the Ruim Config marked in yellow, change it from NV_ONLY to RUIM_ONLY. Once the mode is changed from NV_ONLY to RUIM_ONLY as shown below marked in red, select write marked in yellow & finally select Reset at top right corner of DFS marked in pink. Your phone should reboot and if your phone is capable of taking a RUIM SIM, all features like voice sms and data should work at this time. I try to make my tutorials as noob friendly as possible, if you still have doubts or confused, don't hesitate to ask. Edited February 20, 2014 by Vinod Nayak 31 Share this post Link to post Share on other sites
::Hitesh:: 1,763 Report post Posted February 20, 2014 ^^^ suggestion - Add a LG Diag drivers link to your post. 5 Share this post Link to post Share on other sites
heyraj 1 Report post Posted February 20, 2014 (edited) I don't have words for thanking you.Really amazing.Just For helping one new user (ofcource me) you have made a entire tutorial.it is very very simple.you have helped me a lot at every step without knowing me.very helping nature.thank you very very much vinod sir. Edited February 20, 2014 by heyraj 1 Share this post Link to post Share on other sites
Vinod Nayak 443 Report post Posted February 20, 2014 The reason behind all the tutorial is, lotsa people call me or pm me to help them, this site has given me friends more like my family. lot of people have helped me here when i needed it. so doing the same. 9 Share this post Link to post Share on other sites
sumeetpingale 21 Report post Posted February 20, 2014 Thanks Vinod Bhai.. Share this post Link to post Share on other sites
hiteshkkk1 327 Report post Posted February 20, 2014 VN ko lg wale absorb karne wale hai... Lg ko bhi nahi pata hoga usme kya kya hota hai jitna ki VN ko... Nayak nahi.... Vinod Nayak hu me... Sent from my VS980 4G using Tapatalk 4 Share this post Link to post Share on other sites
KanagaDeepan 1,084 Report post Posted February 20, 2014 Though I am not using CDMA phones for long time, I would like to thank you for the time you spent for this tutorial. Hats off to you for your non-stop knowledge sharing to our forum. Share this post Link to post Share on other sites
ev1lb0ygen1us 27 Report post Posted February 20, 2014 Great tutorial as usual. So with this method, data is assured to work on RUIM even if NV is flashed before? Share this post Link to post Share on other sites
sandeep07 32 Report post Posted February 21, 2014 Thanks vinod bhai, I want to convert my HTC design from nv to ruim mode, can you pl specify which HTC drivers are needed, how to find spc and put phone on diag mode. Thanks once again for the above very useful tutorial. Sandeep, Nagpur Share this post Link to post Share on other sites
bhav_47 5 Report post Posted February 21, 2014 Thanks a lot Sir ji, I was looking for this. Saved a lot of time and energy. Sent from my EVO using Tapatalk Share this post Link to post Share on other sites
Vinod Nayak 443 Report post Posted February 21, 2014 Thanks vinod bhai, I want to convert my HTC design from nv to ruim mode, can you pl specify which HTC drivers are needed, how to find spc and put phone on diag mode. Thanks once again for the above very useful tutorial. Sandeep, Nagpur HTC EVO DESIGN ? Sent from my LG-LS980 using Tapatalk Share this post Link to post Share on other sites
Vinod Nayak 443 Report post Posted February 21, 2014 If you installed all drivers properly put the phone into diag mode using ##3424# then see under device manager see the port number under com ports, use cdma ws 2.7 free version or a cracked version run it, connect to the respective port, select security tab. in security tab in look for password tab, enter the 16 digit password 01F2030F5F678FF9 click send, you should get a popup "your phone is now unlocked", after this in the same tab look for SPC section, click read, that should give you your 6 digit SPC/MSL code. Share this post Link to post Share on other sites
ananth001 21 Report post Posted February 21, 2014 thanks vinod bhai Share this post Link to post Share on other sites
Bablus 66 Report post Posted February 21, 2014 I am from that 1% of 1% that did not even know this is possible.. thanks for sharing keep u the good work! Stupid question : Is there any similar method to get this for the vintage Nokia 2280 phone? I am sure not... but wont be surprised if there is a way out! Share this post Link to post Share on other sites
Vinod Nayak 443 Report post Posted February 21, 2014 Great tutorial as usual. So with this method, data is assured to work on RUIM even if NV is flashed before? If you have flashed NV then RUIM data will not work unless you have a back up of EFS which was taken before flashing NV. I am from that 1% of 1% that did not even know this is possible.. thanks for sharing keep u the good work! Stupid question : Is there any similar method to get this for the vintage Nokia 2280 phone? I am sure not... but wont be surprised if there is a way out! Never seen that phone. Does it have a RUIM slot? If yes then no harm in trying. Share this post Link to post Share on other sites
Genius 817 Report post Posted February 21, 2014 99% of people know how to change mode from NV to RUIM using DFS, This is for the rest 1% who don't know. Now since i am giving seal more and more are working towards it..... ;-) very good effort indeed 2 Share this post Link to post Share on other sites
prihir 53 Report post Posted February 21, 2014 VN ko lg wale absorb karne wale hai... Lg ko bhi nahi pata hoga usme kya kya hota hai jitna ki VN ko... Nayak nahi.... Vinod Nayak hu me... Sent from my VS980 4G using Tapatalk ha ha 1 Share this post Link to post Share on other sites
prihir 53 Report post Posted February 21, 2014 Great tutorial as usual. So with this method, data is assured to work on RUIM even if NV is flashed before?If you have flashed NV then RUIM data will not work unless you have a back up of EFS which was taken before flashing NV. I am from that 1% of 1% that did not even know this is possible.. thanks for sharing keep u the good work! Stupid question : Is there any similar method to get this for the vintage Nokia 2280 phone? I am sure not... but wont be surprised if there is a way out! Never seen that phone. Does it have a RUIM slot? If yes then no harm in trying. how to backup EFS? Share this post Link to post Share on other sites
Vinod Nayak 443 Report post Posted February 21, 2014 Use FreeGee from Google play. Or your using ioroot22 from the LG G2 LS980 main thread Sent from my LG-LS980 using Tapatalk 2 Share this post Link to post Share on other sites
::: VA ::: 531 Report post Posted February 24, 2014 if this is applicable in a generic manner then we dont have to register meid of most phones with global option. i guess i can simply buy something from anywhere and use this tutorial to make life easy. quite sometime back. a certain member had too posted a tutorial for handsets with root access to enable ruim mode. @VN bhai you have posted above that if nv is already flashed then this wont work. so just suppose if i buy something of sprint/verizon even those pieces would be flashed already to their original carrier??? whether new or used. or you mean specifically that it should not be flashed to custom network like our rcdma. please clarify this bit here. Share this post Link to post Share on other sites
Vinod Nayak 443 Report post Posted February 24, 2014 There should be a way. if anyone has a backup of stock NV items, or Brand new phone, all you gotta do is take a NV backup using CDMA WS, then use that NV to flash a already flashed phone, RUIM data might just be possible to achieve this way. Sent from my LG-LS980 using Tapatalk Share this post Link to post Share on other sites
::: VA ::: 531 Report post Posted February 24, 2014 for instance droid dna is a lovely phone, powerful and capable global phone. but cdma is nv only so far, so can your tutorial possibly change it to ruim capable too. Share this post Link to post Share on other sites
Vinod Nayak 443 Report post Posted February 24, 2014 Someone should try it before flashing anything on to it. Sent from my LG-LS980 using Tapatalk Share this post Link to post Share on other sites
pradeep564 8 Report post Posted March 26, 2014 Data is not working for me using ruim Share this post Link to post Share on other sites
Vinod Nayak 443 Report post Posted March 27, 2014 Data is not working for me using ruimOld cut SIM?Sent from my LG-LS980 using Tapatalk Share this post Link to post Share on other sites
